Semi-Integrated Terminals

For more products, please visit our website  https://www.pax.us/products/

Access the menu on the Terminals:

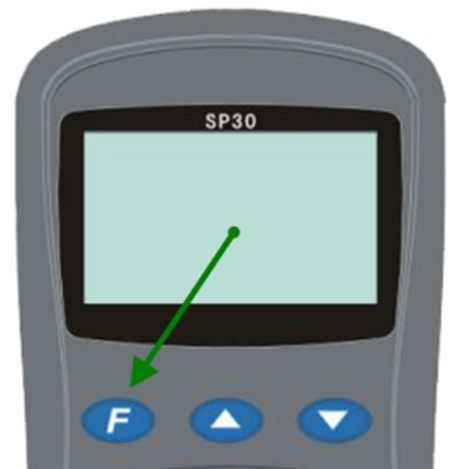

SP30s - Press the “F” key one time.

S300 – Hold the “F” key, press 1 and release both.

S920, PX7, and Q30 – Hold the “green” key, press 1 and release both.

D220 – Press ENTER and CANCEL at the same time

Q20 and IM20 – Tap Four Corners of the screen (Upper-Left, Upper-Right, Lower-Right, and Lower-Left)

Make alpha characters on the terminals:

SP30S - Repeatedly press the key that corresponds to the character you want to create until that letter comes up on the display.

S300S - Press the key that corresponds to the character you want to create then press “Alpha” continuously until that letter comes up on the display.

PX 7 and Q30 – Press the key continuously that corresponds to the character you want to create until that letter comes up on the display.







* If there is incorrect data in any of the fields, you can clear it by pressing the “Clear” button to go back one character, or the “Cancel” button to clear the whole line before you start entering the correct data.

Set a static IP in the SP30S:

1.     Press the “F” key

2.     Select Option 2 (Communication)

3.     Input the System Password (Today’s date MMDDYYYY) and Press “Enter”

4.     Select Option 1 (Main Communication)

5.     Select Option 1 (LAN)

6.     Select Option 3 (LAN Parameters)

7.     Select Option 1 (LAN Type)

8.     Select Option 2 (Static)

9.     Select Option 2 (IP Address)

10.  Input the correct IP Address and press “Enter”

11.  Select Option 3 (Subnet Mask)

12.  Input the Subnet Mask and press “Enter”

13.  Select Option 4 (Gateway IP)

14.  Input the correct IP address and press “Enter”

15.  Select Option 5 (DNS IP)

16.  Input the correct IP address and press “Enter”

If performing the above steps on an S300, hold the “F” or “Func” key and press “1” to access the menu. On the PX7 and Q30, hold the green key and press “1”.

Activate the device:

1.     Press the “F” key to enter the main menu

2.     Select Option 1 (System Settings)

3.     Select Option 1 (App Management)

4.     Select Option 1 (Activate)

5.     Select Option 1 (Online)

The device will connect and become activated.

If performing the above steps on an S300, hold the “F” or “Func” key and press “1” to access the menu. On the PX7 and Q30, hold the green key and press “1”.

Download the application in the SP30S:

1.     Press the “F” key to enter the main menu

2.     Select Option 1 (System Settings)

3.     Select Option 1 (App Management)

4.     Enter the System Password (Today’s date MMDDYYYY) and Press “Enter”

5.     Select Option 2 (App Update)

The device will connect and the application will be downloaded.

If performing the above steps on an S300, hold the “F” or “Func” key and press “1” to access the menu. On the PX7 and Q30, hold the green key and press “1”.

Integration Process

If you are interested in implementing integration for your reseller account, please email Sales@pax.us for instructions on the process.



Which PAX devices can be integrated with a POS device (ECR, computer, etc.) – S300, SP30s., D220, Px7, and Q30?  Some standalone terminals such as S500 and S920 can be assigned an integration application so that they also work as integrated terminals.

PAX is continually working on new devices.  For up-to-date information on available devices, please see https://www.pax.us/products/ or email our Sales Team at sales@pax.us.

Can Android devices be integrated? If you have questions about integrating an Android device, please contact our sales department.

How does the POS communicate with the processing host when integration terminals are employed? – The POS doesn’t communicate with the processing host. The only communication it has is with the PAX device. The PAX-integrated terminal handles the host communications.

How does the integration process work?  You will need to have an account on the PAX Developer Portal for resources on how to implement the integration process.  If you are also designing Android applications, you will need developer access to PAXSTORE.

Once the integration process is complete, you will need access to PAXSTORE in order to set up the payment application so it will download to the terminal.
